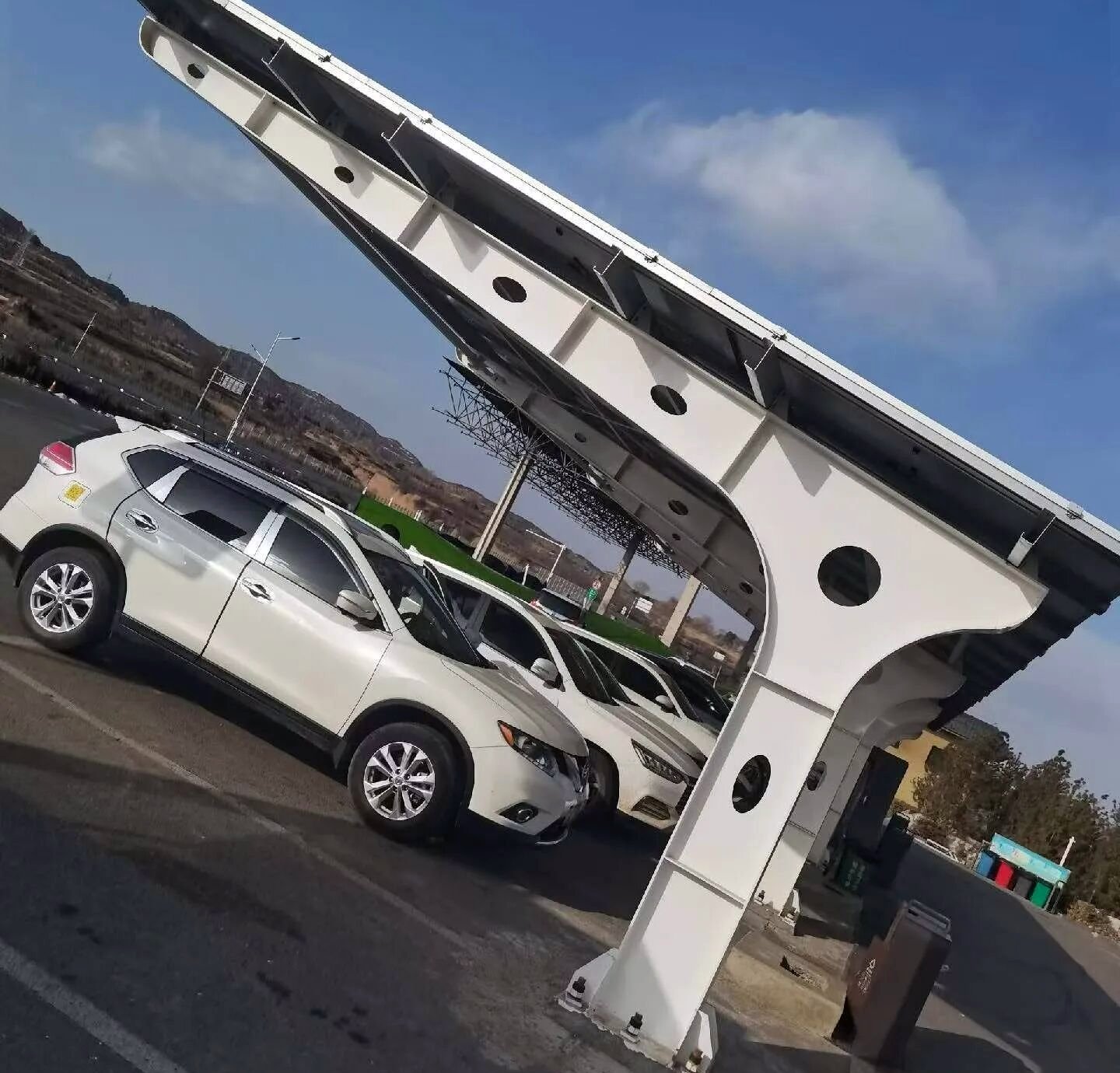

Single-side cantilever carport with a parked SUV

6,000 mmSpan

2,400 mmEave height

1 rowBays

HDGFinish

XG-CP-S

Single-Side Cantilever Carport

One row of bays on a single column line, with the parking side kept clear.

Indicative priceUS$0.075–0.110 / WIndicative per watt of installed module capacity

Clear parking side — no column in the reversing line
Single column line keeps the foundation simple
Hot-dip galvanised steel, bolted site assembly
Suitable for tight sites and boundary parking

Request a quotation See drawings

Photographs from delivered projects. Dimensions are confirmed on the approved drawing before fabrication.

Clear parking side

No column at the parking edge — easier access and less damage risk.

Single foundation line

One row of pads or ground screws keeps civils work small.

Falling canopy

Rear height above the eave sheds water to the gutter on the low side.

Row flexibility

2–12 bays per row; rows can step with the kerb line.

Overview

The single-side cantilever carries one row of bays from a single column line. The parking side stays open, which makes reversing, door opening and cleaning easier than a portal frame with columns at both edges.

The rafter is a tapered or straight H-beam welded to the column, with the rear height above the eave so the canopy falls away from the parking bay. Purlins run across the rafter at the module spacing and the gutter sits on the low side.

It is the usual choice for boundary parking, narrow service yards and staff bays along a fence, where a double-sided frame would not fit.

Specification

Span	6,000 mm (typical)
Eave height	2,400 mm
Rear height	2,923 mm
Column	H300×150×6×8
Rafter	H300-150×150×6×8
Bays	2–12 per row, one row
Foundation	Concrete base or ground screw
Finish	Hot-dip galvanised or primer
Module fixing	Rail or direct purlin
Design load	Set to local wind and snow load

Final specification is confirmed on the drawing and against the approved sample.

Project gallery

Built, installed and in use

Photographs from carport projects — structure, underside detail and the finished parking rows.

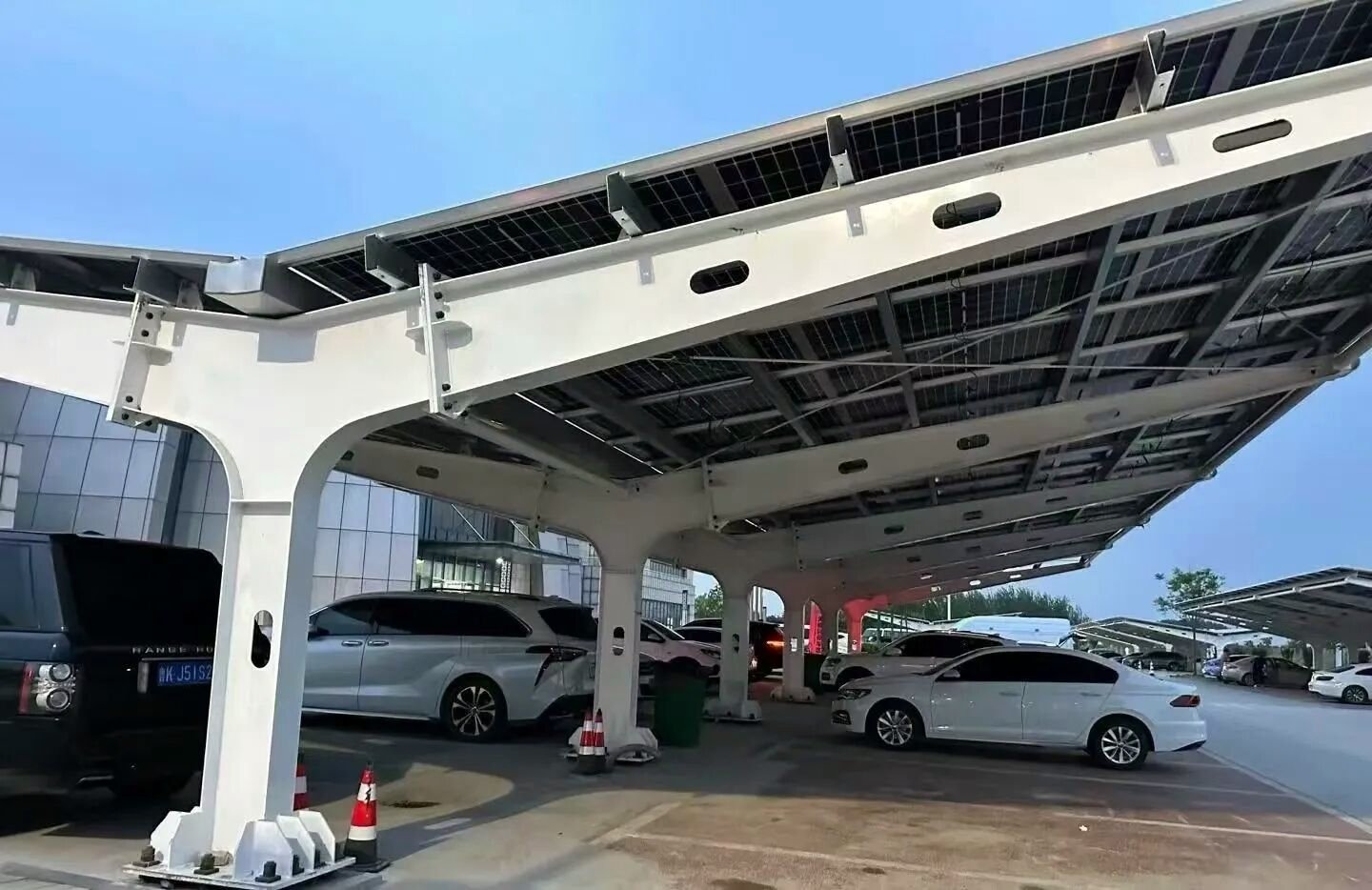

Underside structure and bolted connections

Drawings & dimensions

Standard GA drawings

All dimensions in millimetres. Sections are engineered to the project wind and snow load; the approved drawing governs fabrication.

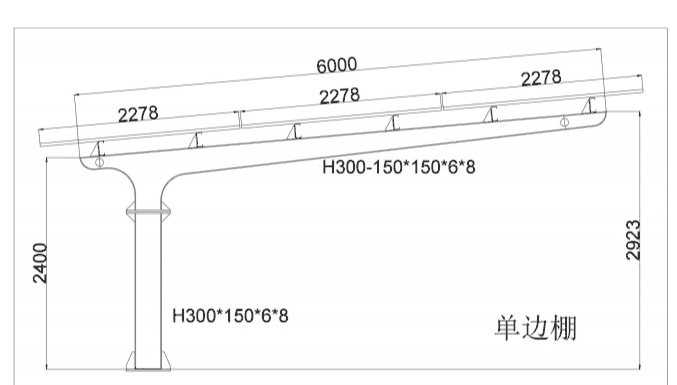

6,000 mm · 2,400 / 2,923 mm

600024002923H300-150×150×6×8H300×150×6×8

Standard cantilever: 6,000 mm span, 2,400 mm eave, 2,923 mm rear height.

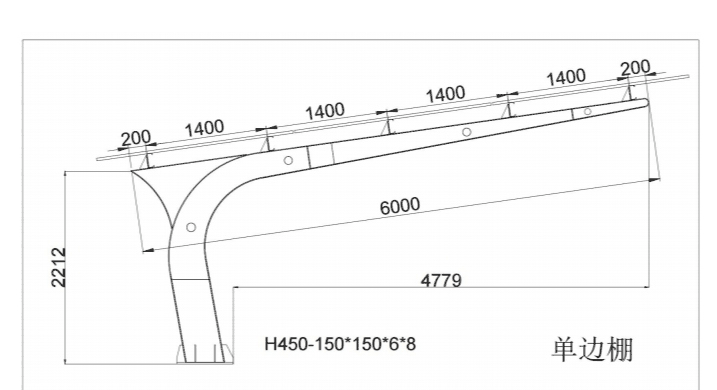

6,000 mm · 2,212 mm eave

600022124779H450-150×150×6×8

Lower-profile version with a deeper rafter and a 2,212 mm eave.

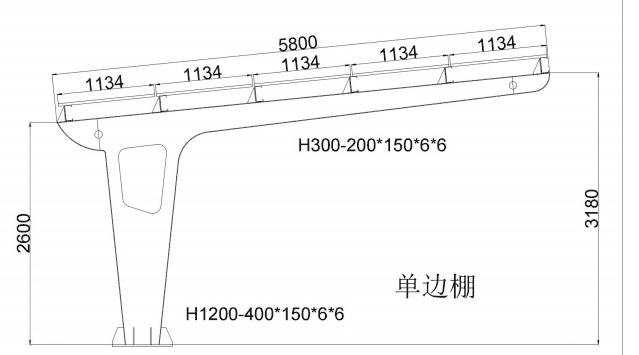

5,800 mm · 2,600 / 3,180 mm

5800260031801134H1200-400×150×6×6

Heavy tapered column for exposed sites, 5,800 mm span and 3,180 mm rear height.

Design visualisation

3D concepts used during layout discussion. Geometry, sections and finish are confirmed on the approved GA drawing.

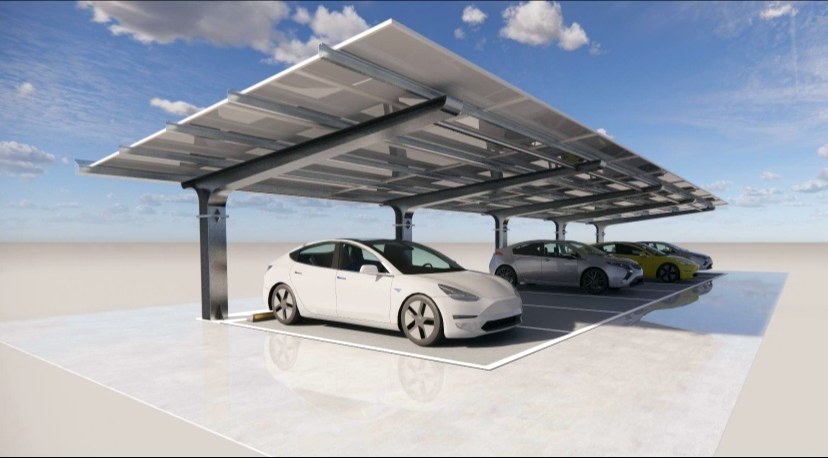

**3D concept**Single-side cantilever with a straight column

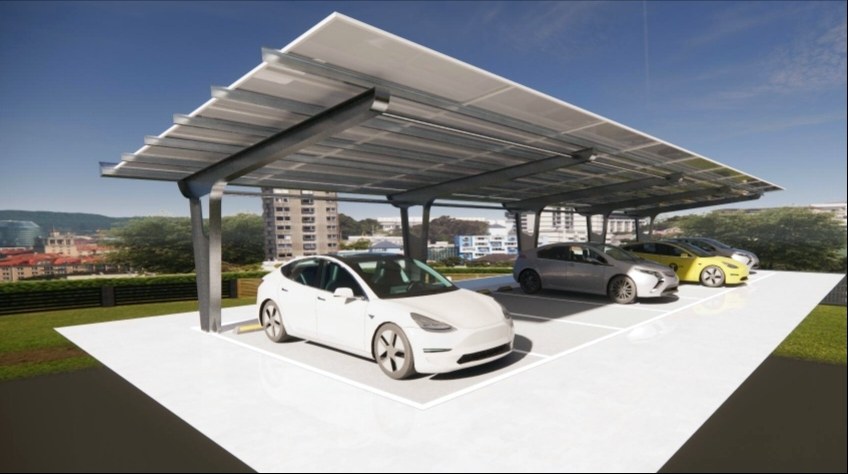

3D conceptCantilever with a deeper rafter profile

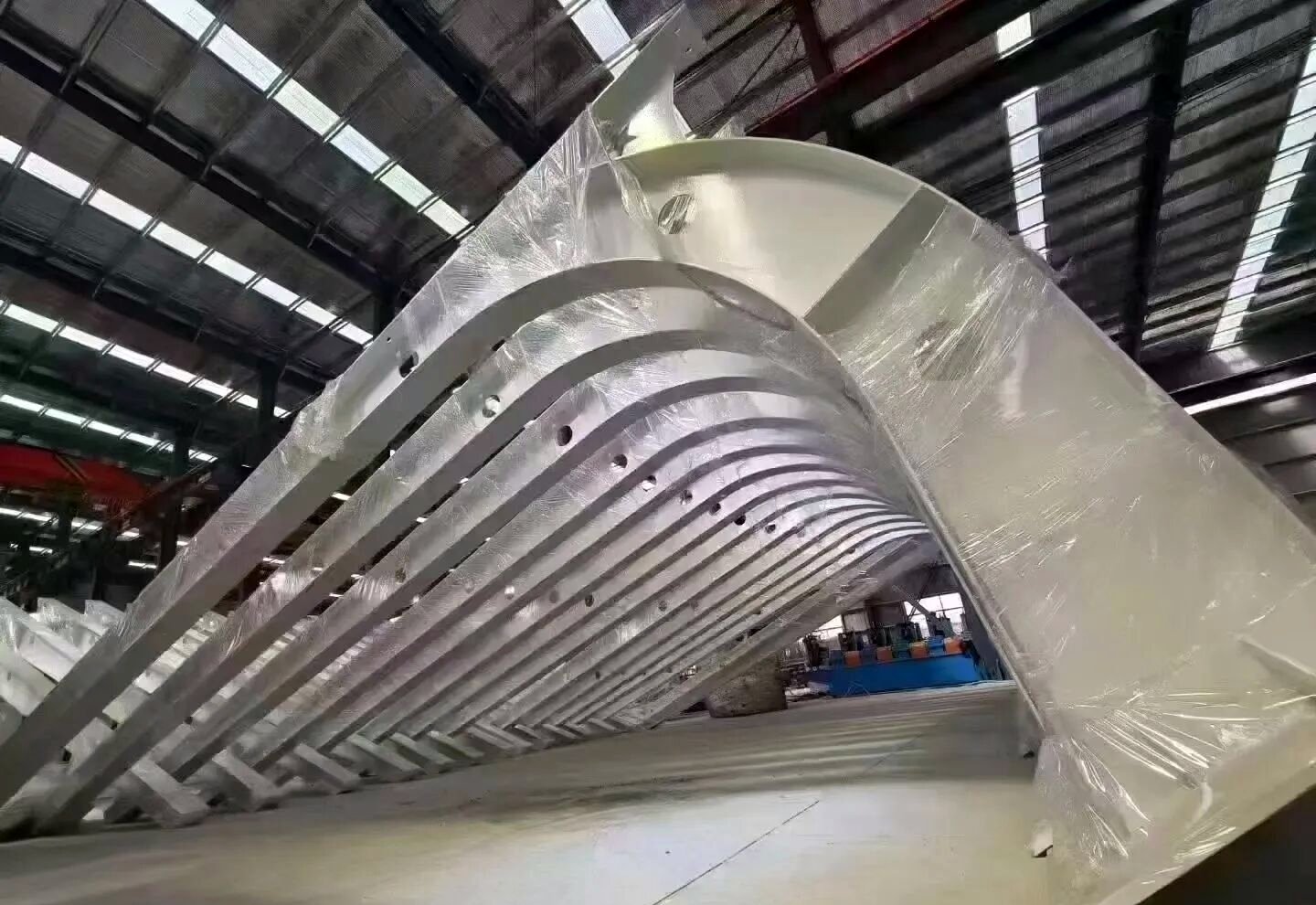

Welded carport frames wrapped in the workshop

Bolted connections under the carport canopy

Workshop & site

Built around the parking bay

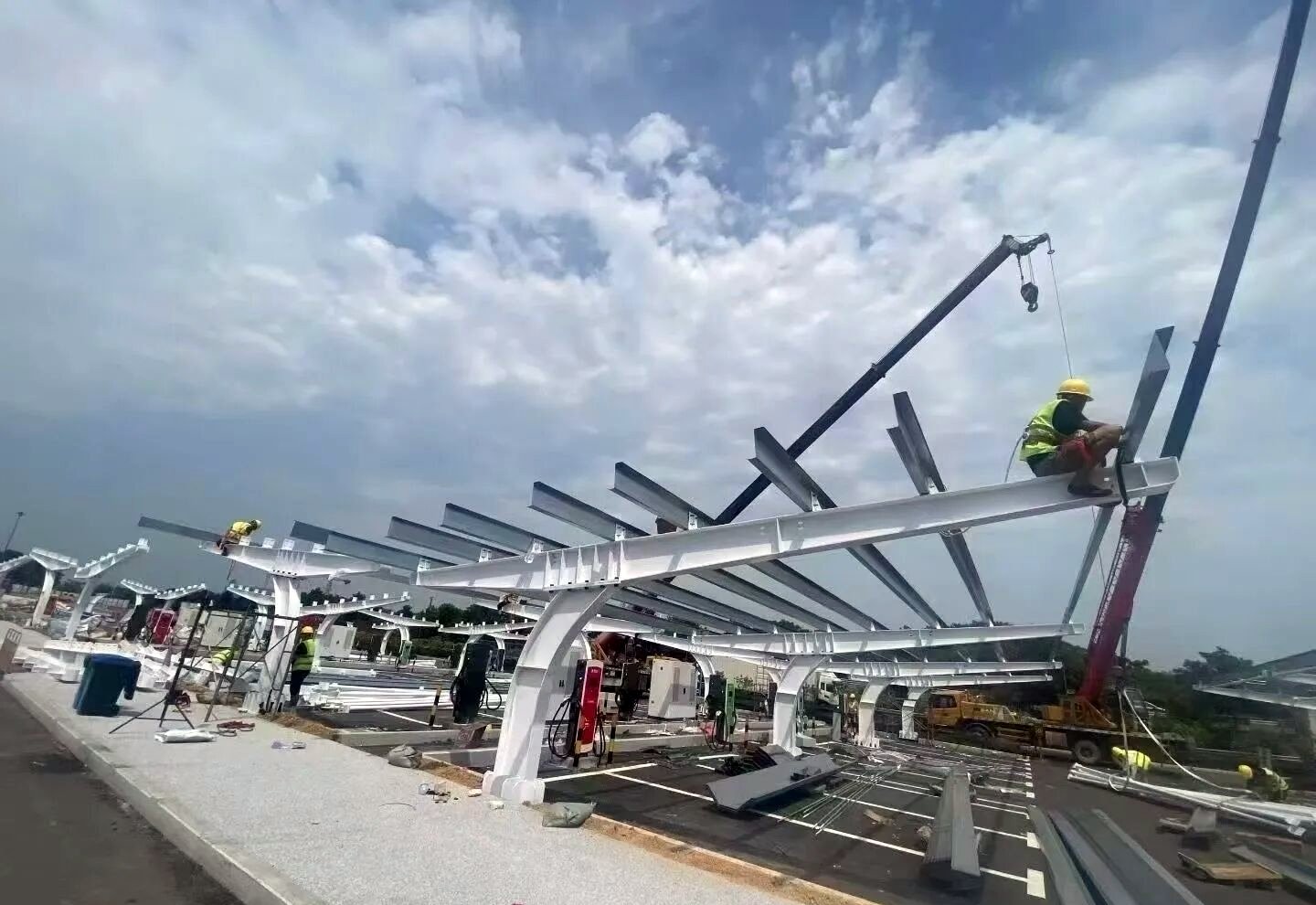

The column line is set first, then the rafter is lifted and bolted to the column head. Purlins and rails follow, and the gutter is aligned to the downpipe positions. Because there is only one foundation line, the civils and erection sequence stay short.

Column grid set out from the kerb line
Base plate level and anchor torque
Rafter fall checked towards the gutter
Purlin spacing matched to the module
Gutter joint and downpipe test
Bollards or wheel stops agreed

Options

What can be tailored

The frame, finish and electrical interface are set before fabrication — not adjusted on site.

Parking direction

Nose-in or reverse-in; the canopy can overhang the bay by an agreed amount.

Bay width

2.4 m, 2.5 m or 2.7 m; accessible bays on request.

Finish

Hot-dip galvanised, primer, or powder coat in a RAL colour.

Drainage

Gutter and downpipe on the low side, connected to the site drainage plan.

EV readiness

Charger post or bracket at the column, with cable tray under the purlins.

Protection

Wheel stops, bollards and column guards for high-traffic bays.

Questions

Common questions

Why choose a cantilever?

It keeps the parking side free of columns, so drivers reverse into an open bay and doors open against nothing. It also needs only one foundation line.

How long can one row be?

Typically 2–12 bays per row. Row length is usually limited by transport and site layout rather than the structure; longer runs are split into frames.

Where does the water go?

The canopy falls to a gutter on the low side, with downpipes at agreed column positions and a connection to the site drainage plan.

Can it be installed on an existing car park?

Yes, provided the base plates and foundations can be built without disturbing the parking layout. A phased installation can keep part of the car park open.
