Long-span curved-column carport with a continuous row of bays

5.8–7.0 mSpan

3,180 mmRidge height

H1200Column

1,134 mmPurlin

XG-CP-L

Long-Span Curved Carport

A curved tapered column for wide bays and long, uninterrupted rows.

Indicative priceUS$0.085–0.130 / WIndicative per watt of installed module capacity

Wide bay with a curved, tapered column
Continuous rows with repeating frames
Deep section for wind and snow exposure
Integrated gutter and downpipe positions

Request a quotation See drawings

Photographs from delivered projects. Dimensions are confirmed on the approved drawing before fabrication.

Wide clear bay

Up to 7 m per side with a deep rafter and curved column.

Curved tapered column

Welded from plate, galvanised as one piece, no sharp knuckle.

Continuous rows

Repeating frames with expansion joints where the row requires them.

Service-friendly

Gutter, downpipes and cable routes integrated into the frame line.

Overview

The long-span carport uses a curved tapered column and a deep rafter to clear bays up to about seven metres. The curve carries the load into the column without a sharp knuckle, and leaves a clean silhouette along the row.

Frames repeat along the row at the module spacing, with purlins at 1,134 mm in the standard layout. The column is welded from plate to the tapered section shown on the drawing, then hot-dip galvanised as one piece.

It suits front-of-building parking, retail and transport sites, and rows where the client wants fewer columns and a wider, more open canopy.

Specification

Span	5,800–7,000 mm per side
Ridge height	3,180 mm
Column	H1200-400×200×6×6 (tapered)
Rafter	H300-200×200×6×6
Purlin spacing	1,134 mm
Rows	Continuous, any length in frames
Foundation	Concrete base or ground screw
Finish	Hot-dip galvanised
Module fixing	Rail or direct purlin
Design load	Set to local wind and snow load

Final specification is confirmed on the drawing and against the approved sample.

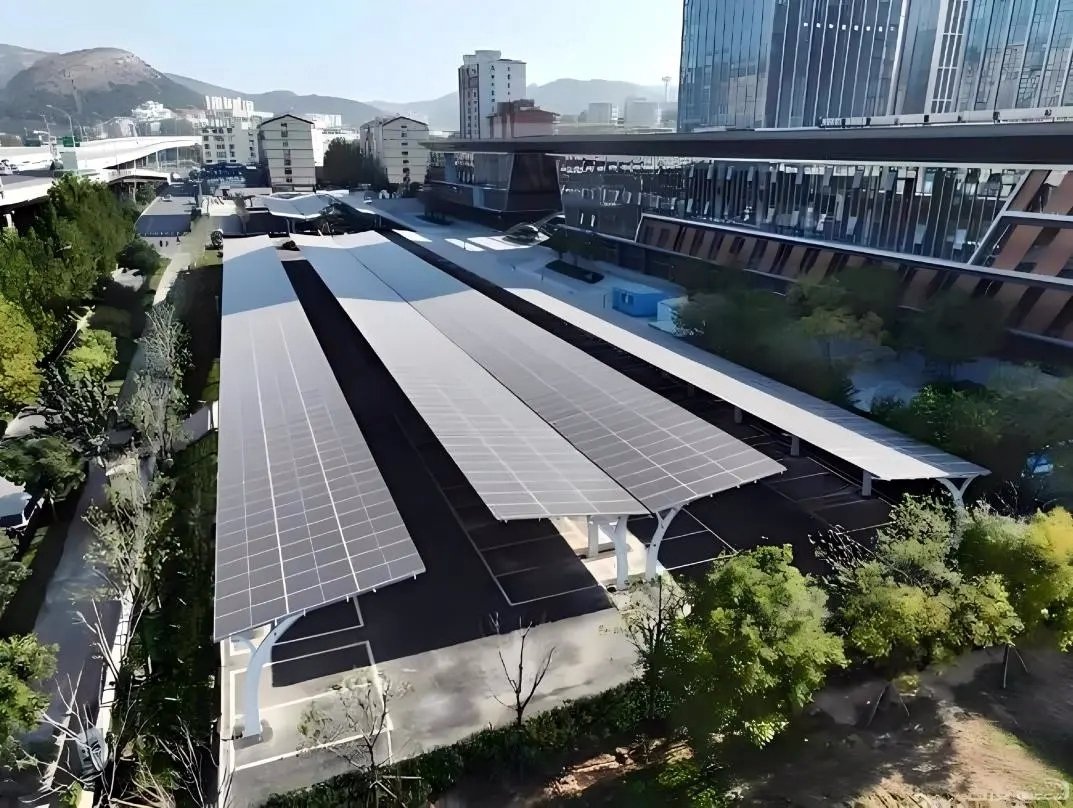

Project gallery

Built, installed and in use

Photographs from carport projects — structure, underside detail and the finished parking rows.

Drawings & dimensions

Standard GA drawings

All dimensions in millimetres. Sections are engineered to the project wind and snow load; the approved drawing governs fabrication.

2 × 5,900 mm · 3,180 mm

590031801134H300-200×200×6×6H1200-400×200×6×6

Double-side long-span frame with the heavy tapered column and 1,134 mm purlins.

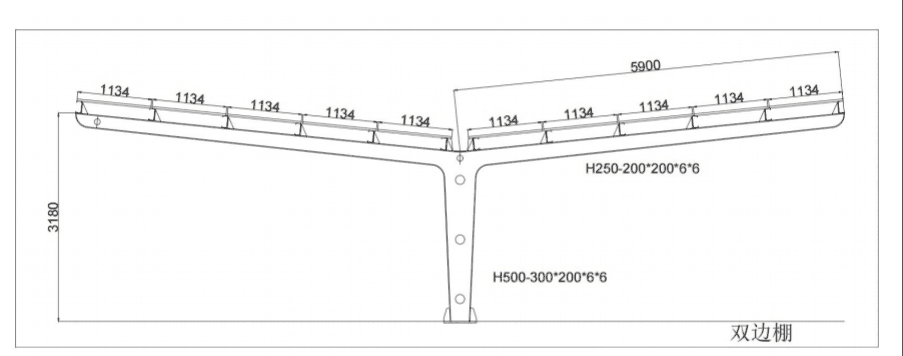

2 × 5,900 mm · lighter section

590031801134H250-200×200×6×6H500-300×200×6×6

The same 5,900 mm geometry with a lighter rafter and column for lower loads.

5,800 mm single side · 3,180 mm

5800260031801134H1200-400×150×6×6

Single-side long-span variant with a 5,800 mm cantilever and 2,600 mm eave.

Design visualisation

3D concepts used during layout discussion. Geometry, sections and finish are confirmed on the approved GA drawing.

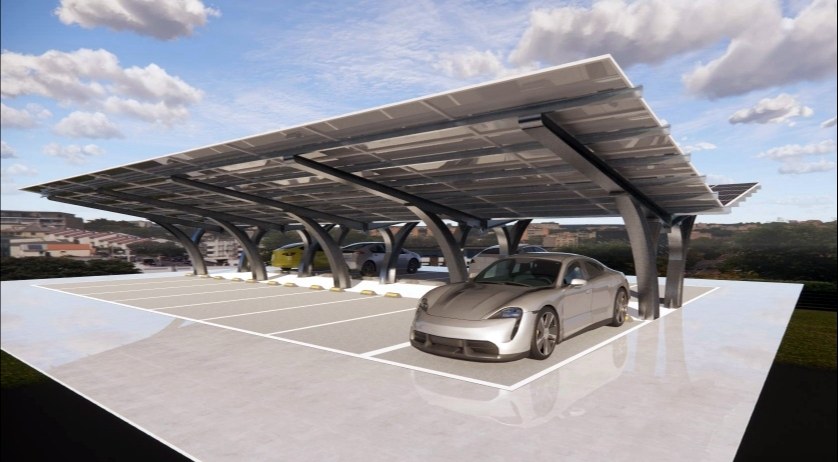

**3D concept**Curved column and wide bay

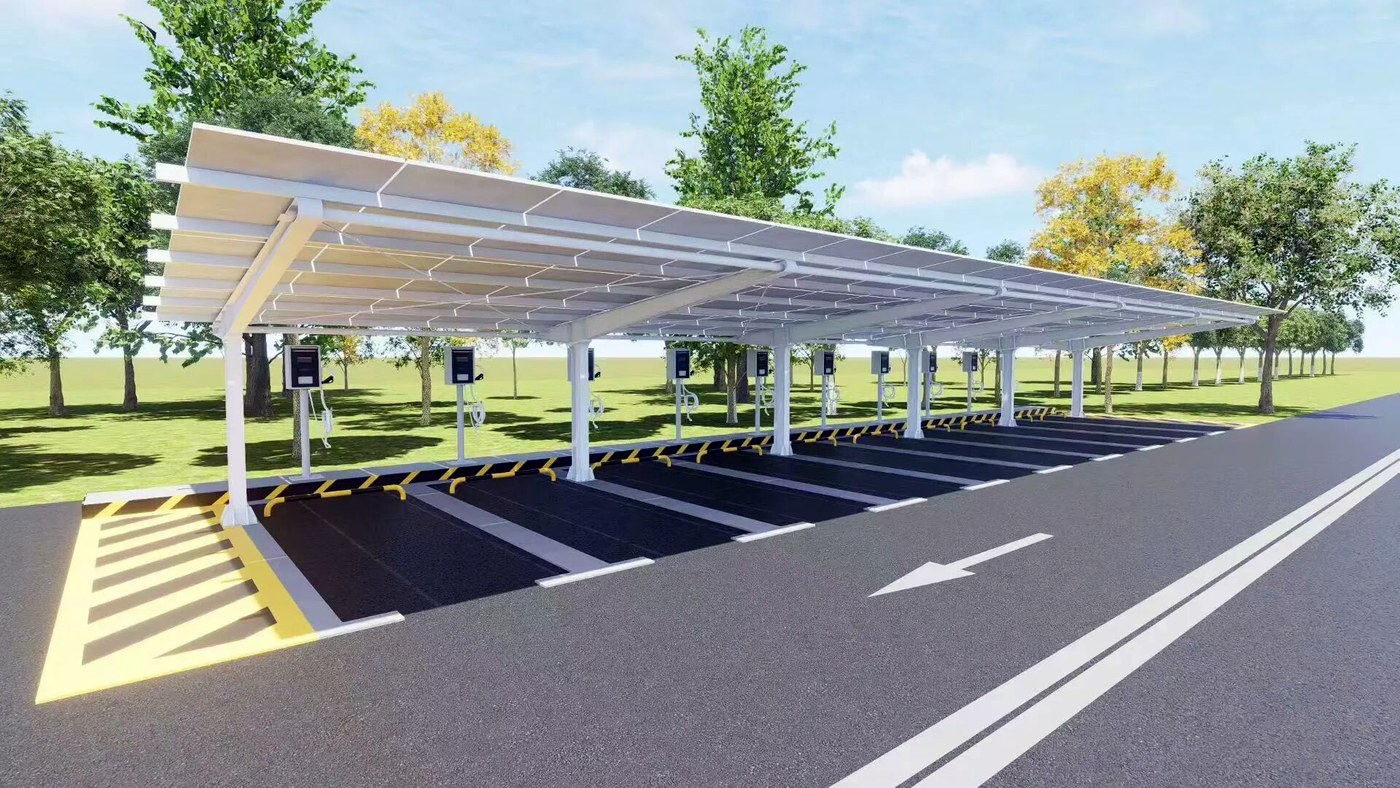

**3D concept**Continuous row with charger positions

Welded carport frames wrapped in the workshop

Bolted connections under the carport canopy

Workshop & site

A row that reads as one line

The tapered column is the visual signature of the row, so the frames are jig-welded to keep the curve consistent. On site the columns are set and plumbed first, the deep rafters are bolted, then purlins and rails run the full length of the row.

Column grid and curve orientation checked
Base plate level and anchor torque
Rafter splice and bolt torque
Purlin line straight over the full row
Gutter fall and expansion joints
Cable tray and downpipe coordination

Options

What can be tailored

The frame, finish and electrical interface are set before fabrication — not adjusted on site.

Span

5.8 m to 7.0 m per side, confirmed against wind and snow load.

Column finish

Hot-dip galvanised as standard; powder coat in a RAL colour on request.

Bay width

2.5 m to 2.8 m; wider accessible bays on request.

Drainage

Gutter along the row, downpipes at agreed frames, leaf guards optional.

EV readiness

Charger brackets and cable tray integrated into the frame line.

Fascia

Aluminium or steel fascia for branding and lighting.

Questions

Common questions

What is the maximum span?

The standard drawings cover 5,900 mm per side with a 3,180 mm ridge; the range is 5,800–7,000 mm. Final sections are engineered to the local wind and snow load.

Why a curved column?

The curve transfers the rafter load into the column without a sharp welded knuckle and gives the row a cleaner profile. The column is welded from plate and galvanised as one piece.

Can rows run the full length of a car park?

Yes. Frames repeat along the row and the run is split into transportable frames, with expansion joints where the design requires them.

How is it shipped?

Knocked down: columns, rafters, purlins, rails and fixings are bundled and loaded into containers, with each bundle marked to the erection drawing.
