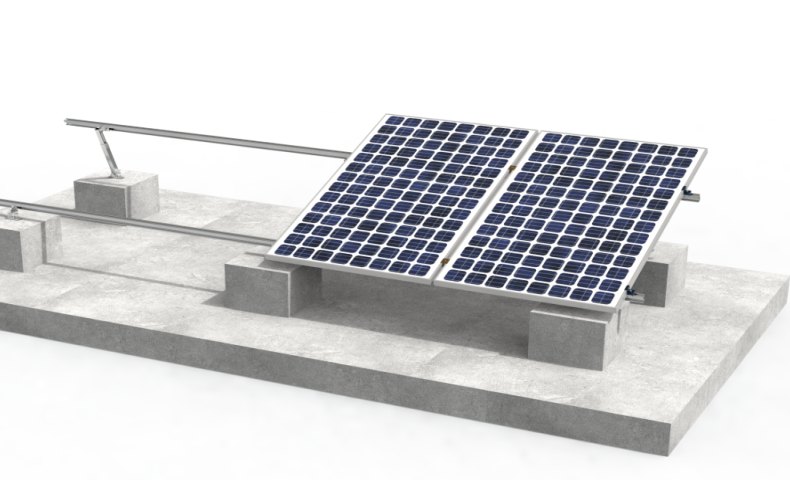

XG-FR-A
Adjustable Tilt Racking
Tilt from 10° to 60° for flat roofs and seasonal yield.
Indicative priceUS$0.040–0.065 / WIndicative per watt of module capacity
- Drawing review and sample before the batch
- Neutral or private-label export packing
- Material and finish recorded per batch
Overview
Adjustable racking with a fixed or seasonal tilt setting, used on flat concrete roofs and metal roofs where the module angle must be tuned.
The frame is assembled from aluminium profiles and bolted, with the angle locked by a brace.
Specification
| Tilt | 10°–60°, adjustable |
|---|---|
| Roof type | Flat concrete / metal |
| Material | AL 6005-T5 + SS 304 |
| Module | Framed, portrait or landscape |
| Foundation | Ballast or chemical anchor |
| Wind load | Confirmed per project |
Final specification is confirmed on the drawing and against the approved sample.
Related

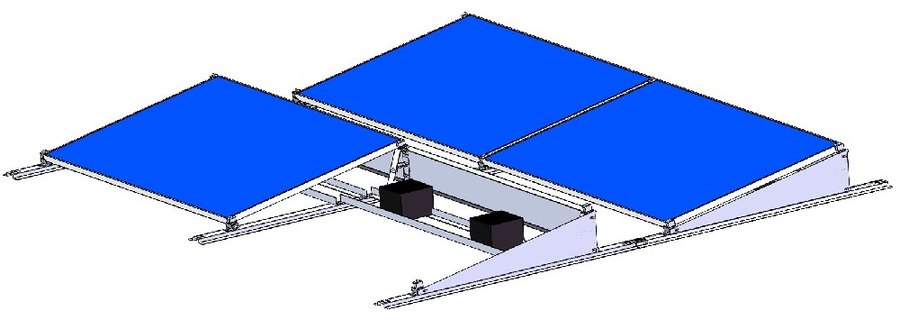

Other products in Flat Roof Mounting System
