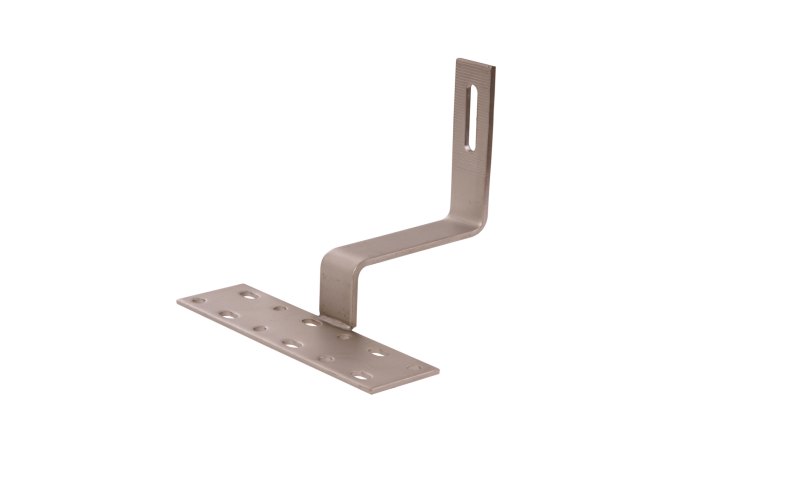

XG-RH-SS
Stainless Steel Roof Hook
Corrosion-resistant hook for coastal installations.
Indicative priceUS$1.20–2.40 / pcFOB Xiamen, MOQ 500 pcs
- Drawing review and sample before the batch
- Neutral or private-label export packing
- Material and finish recorded per batch
Overview
A2/A4 stainless hook bent from flat bar, with a slotted base for height adjustment and a bolt-on rail seat.
Used on pitched roofs where the tile is lifted and the hook fixes to the batten underneath.
Specification
| Material | Stainless steel A2 / A4 |
|---|---|
| Bar | 4–6 mm flat bar |
| Adjustment | Slotted base, ±15 mm |
| Rail seat | Bolt-on, 40 mm rail |
| Roof type | Tile and shingle |
| Finish | Passivated |
Final specification is confirmed on the drawing and against the approved sample.
Related
Other products in Rooftop Mounting System

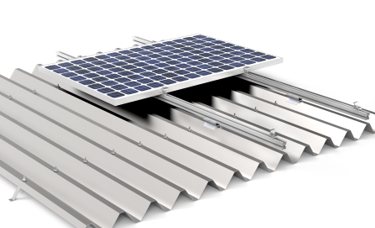

XG-RM-M
Metal Roof Mounting Kit
Corrugated and trapezoidal metal roofs, clamped without drilling the sheet.
US$0.030–0.050 / W

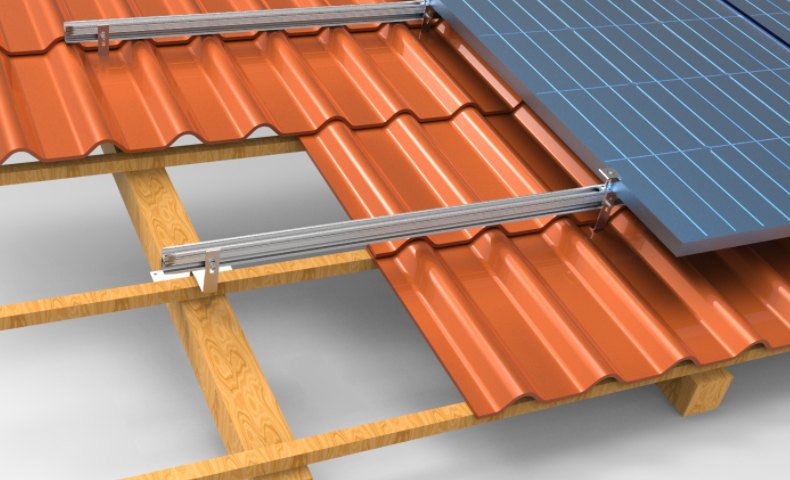

XG-RM-T
Tile Roof Mounting Kit
Pitched tile roofs with stainless hooks, no tile cutting.
US$0.032–0.055 / W

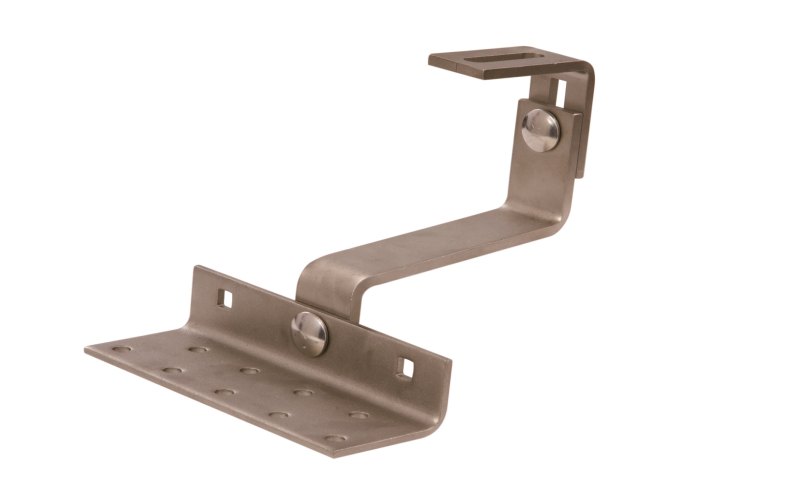

XG-RH-ADJ
Adjustable Roof Hook
Height adjustment for uneven battens on older roofs.
US$1.40–2.60 / pcSend your project list, get a price
Tell us the system, module size and quantity — most requests receive a first reply within one working day.
