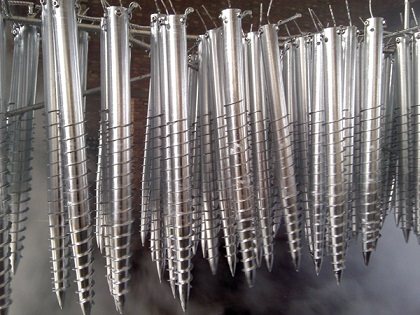

2100 mm Tube Type Ground Screw
Continuous helix for direct installation in soil, no concrete and no excavation.
- Drawing review and sample before the batch
- Neutral or private-label export packing
- Material and finish recorded per batch
Overview
Hot dip galvanised Q235 steel tube with a continuous helical blade, driven into the ground with a torque driver. The top connection is made to the rack post or a flange plate.
Used for ground-mount arrays, fences, carports and light structures. Length, blade diameter and top connection are made to the project drawing.
Specification
| Material | Q235 carbon steel |
|---|---|
| Finish | Hot dip galvanised |
| Diameter | Ø76 mm / Ø89 mm |
| Wall thickness | 2.75 / 3.0 / 3.5 mm |
| Length | 1,200–2,500 mm (2,100 mm standard) |
| Top connection | Flange plate or direct post |
Final specification is confirmed on the drawing and against the approved sample.
Other products in Ground Mounting System

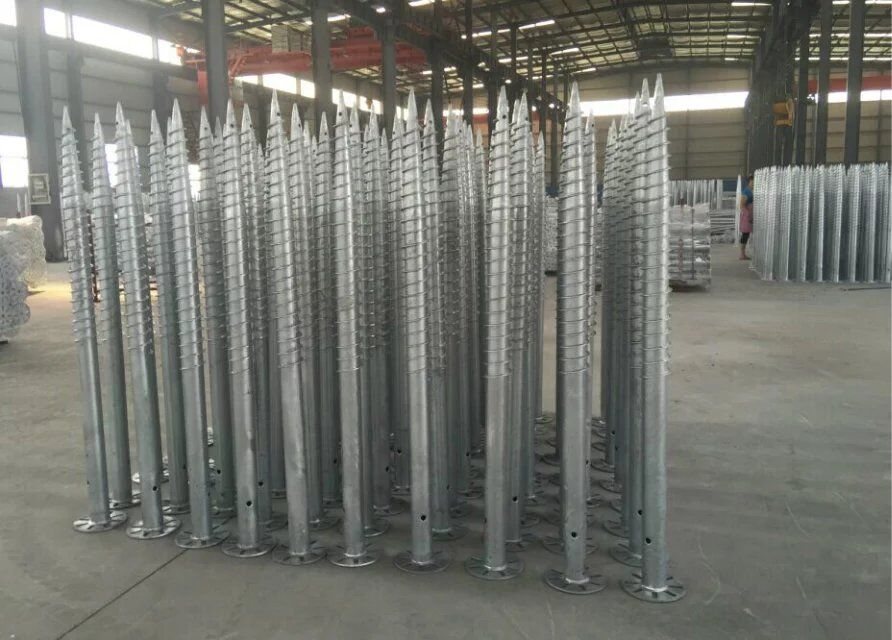

1800 mm Flange Top Ground Screw
Bolted flange plate carries your post, no welding on site.
US$7.00–11.50 / pc

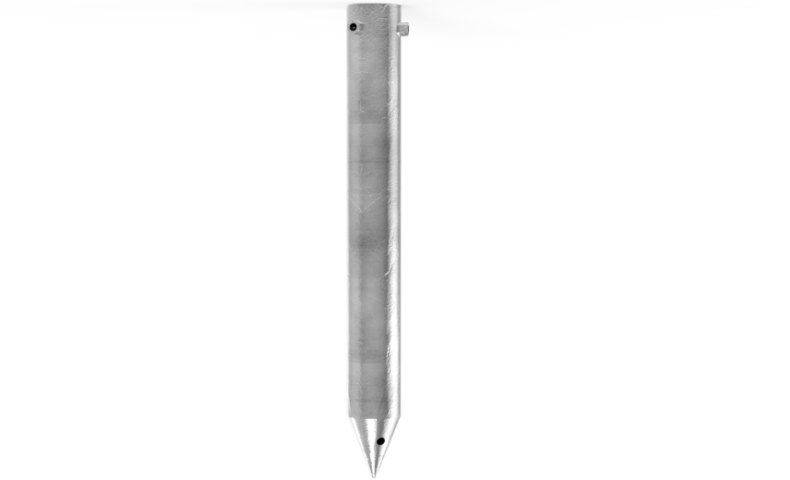

Ground Screw for Fence and Lighting
