H-Beam Brackets Welded to Drawing
End plates, stiffeners and holes per drawing.
Home / H-Beam Steel
H-beam steel bracket systems
Cut, welded, drilled and finished to your drawing — then coded, bundled and packed so the site crew can assemble without re-measuring.
What we fabricate
Steel parts that carry the structure, not just the module
Solar arrays on ground screws still need steel to bridge the foundations to the rails: brackets, columns, cross beams and supports. We fabricate those parts from H-beam, box section and plate, working from your structural drawing, cutting list or a sample part.
The scope starts at a single bracket type and runs to full beam sets for a project, including base plates, stiffeners, lifting points and hot dip galvanising.
- Built to your drawing, cutting list or sample
- Jigs and fixtures for repeat members
- Member coding and match marks for site assembly
- Shot blast + primer, or hot dip galvanising

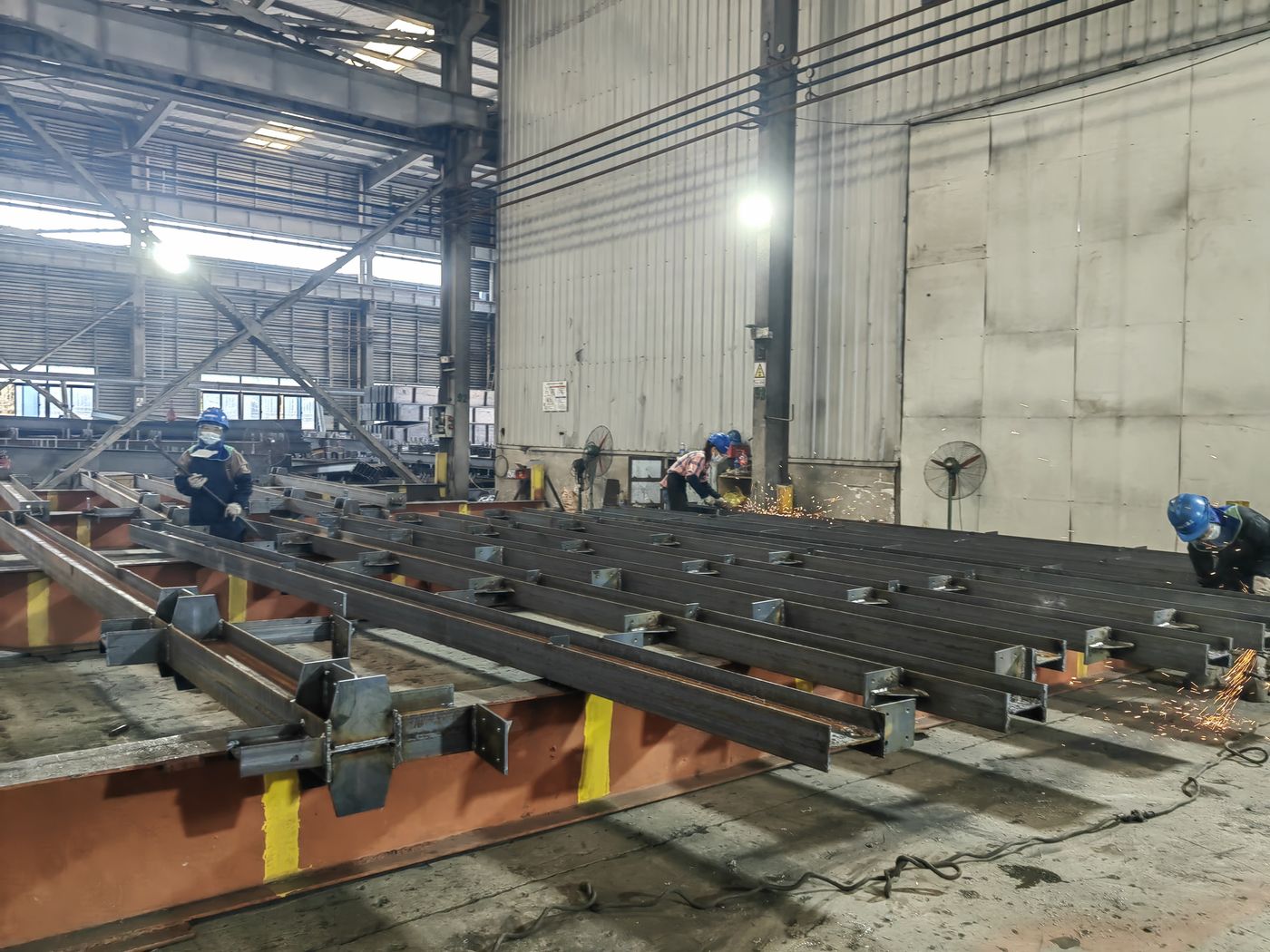

Bracket welding · jig set-up
Q235B / Q345BSteel grades (S235 / S355 on request)
To drawingSection, plates, holes and length
CodedMember marks and match marks
ExportBundled, strapped, labelled
H-beam product range
Seven lines, one fabrication file
Each item below is produced against an approved drawing; the photos are from our own workshop and site work.

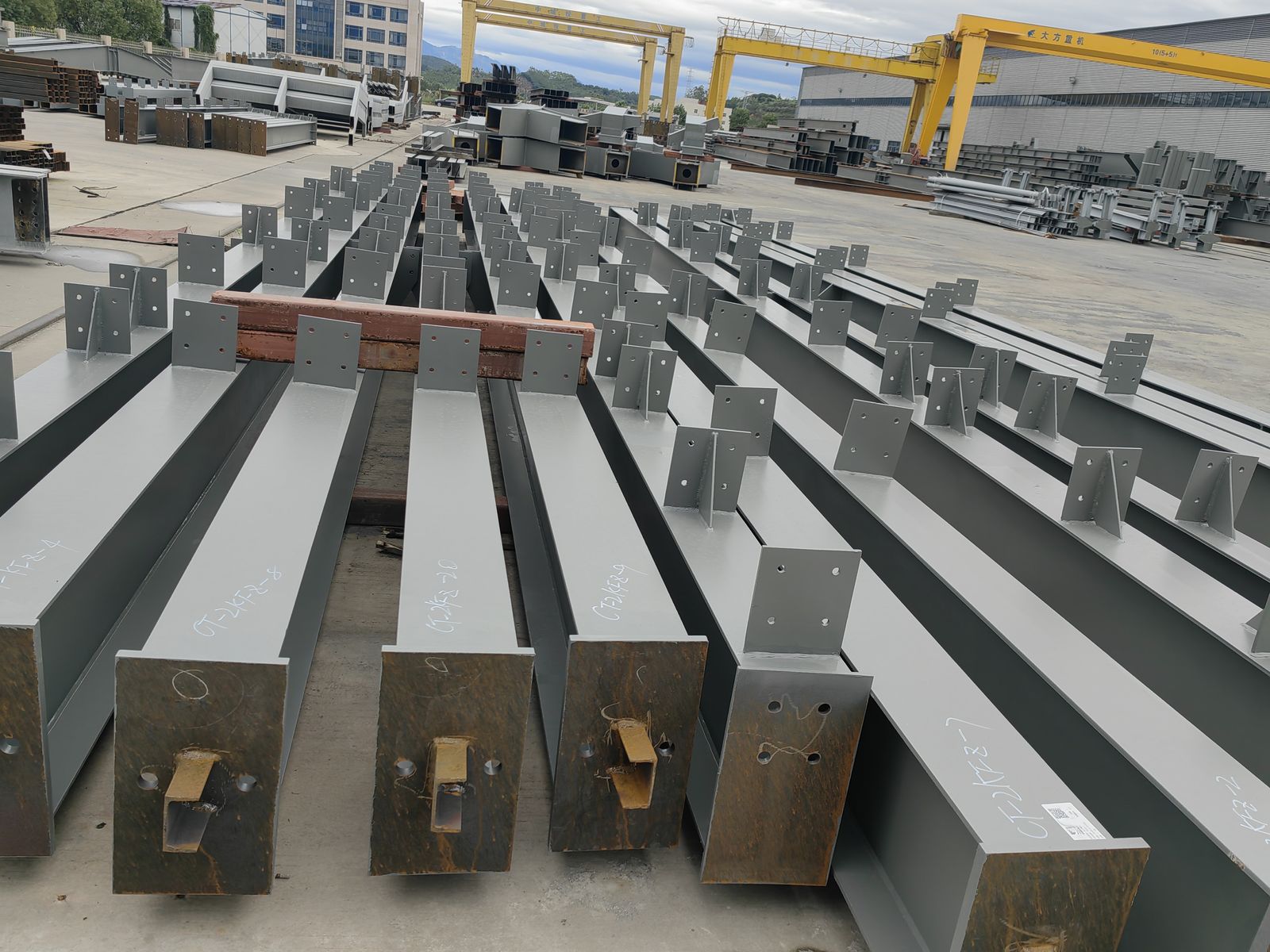

Fabricated H-Beam Supports, Coded
Finished, primed and marked for site assembly.

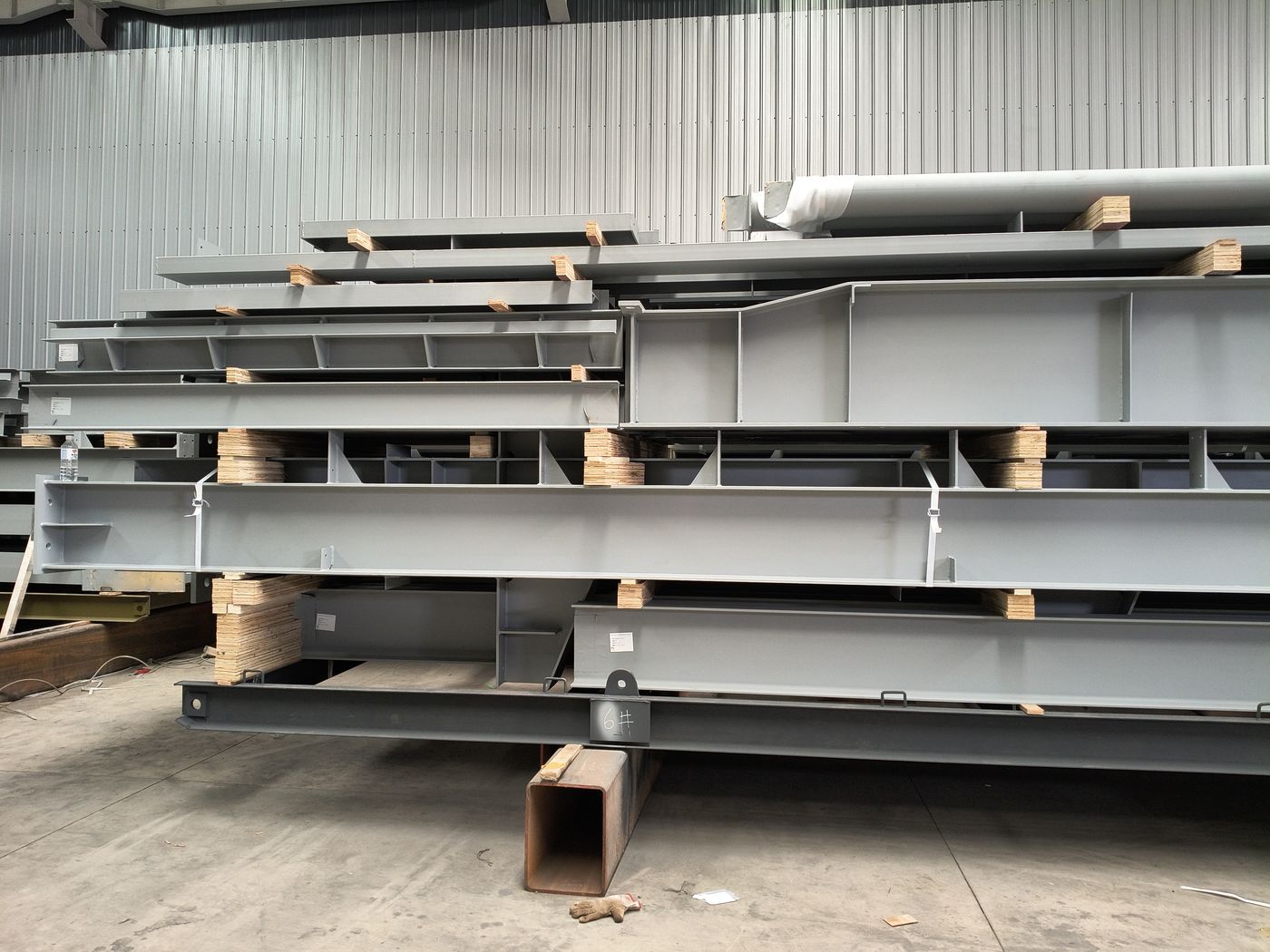

Fabricated Beam Sets, Stacked
Batches stacked and separated for transport.

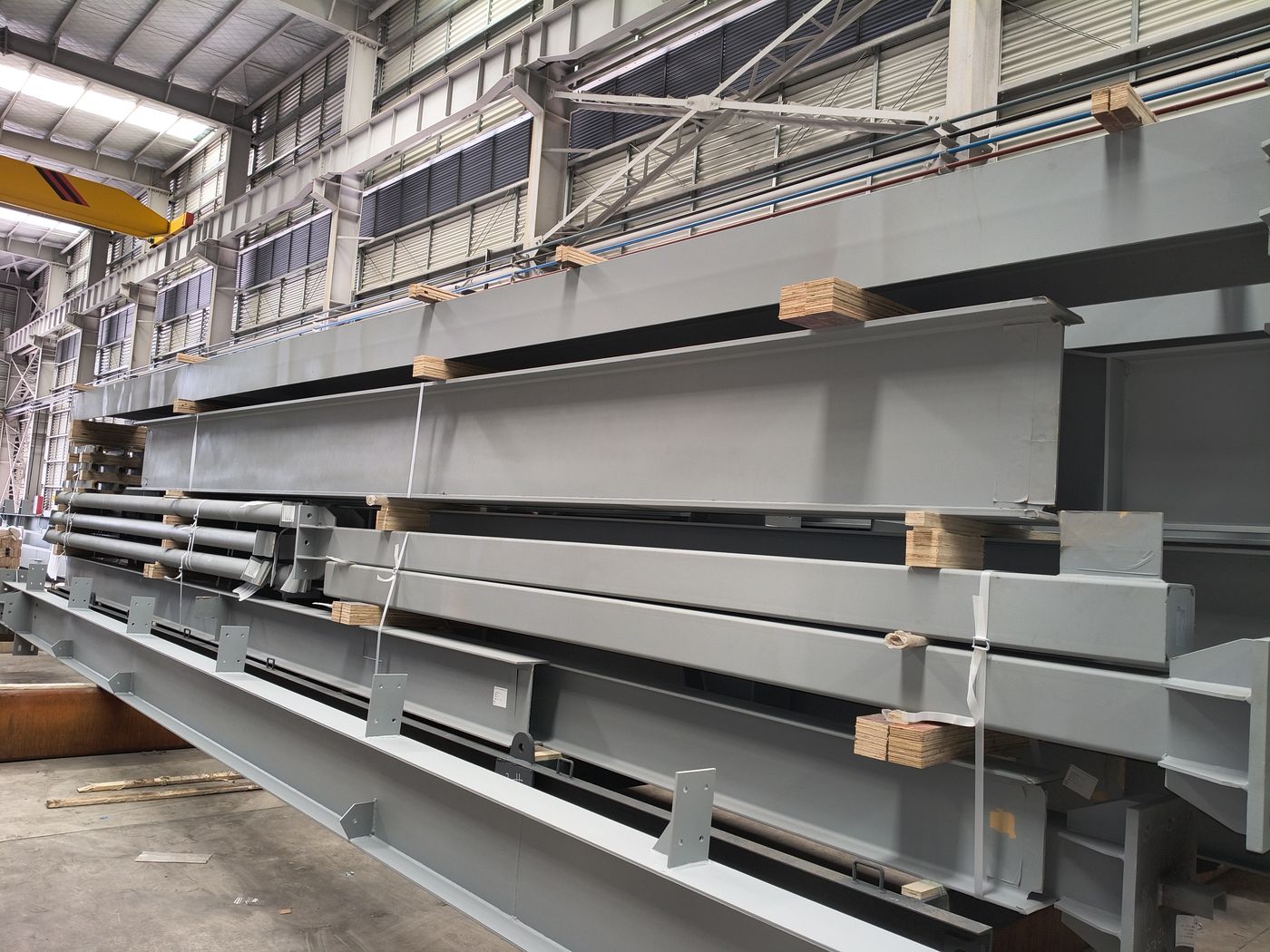

Long-Span Fabricated Beams
Long members with stiffeners and lifting points.

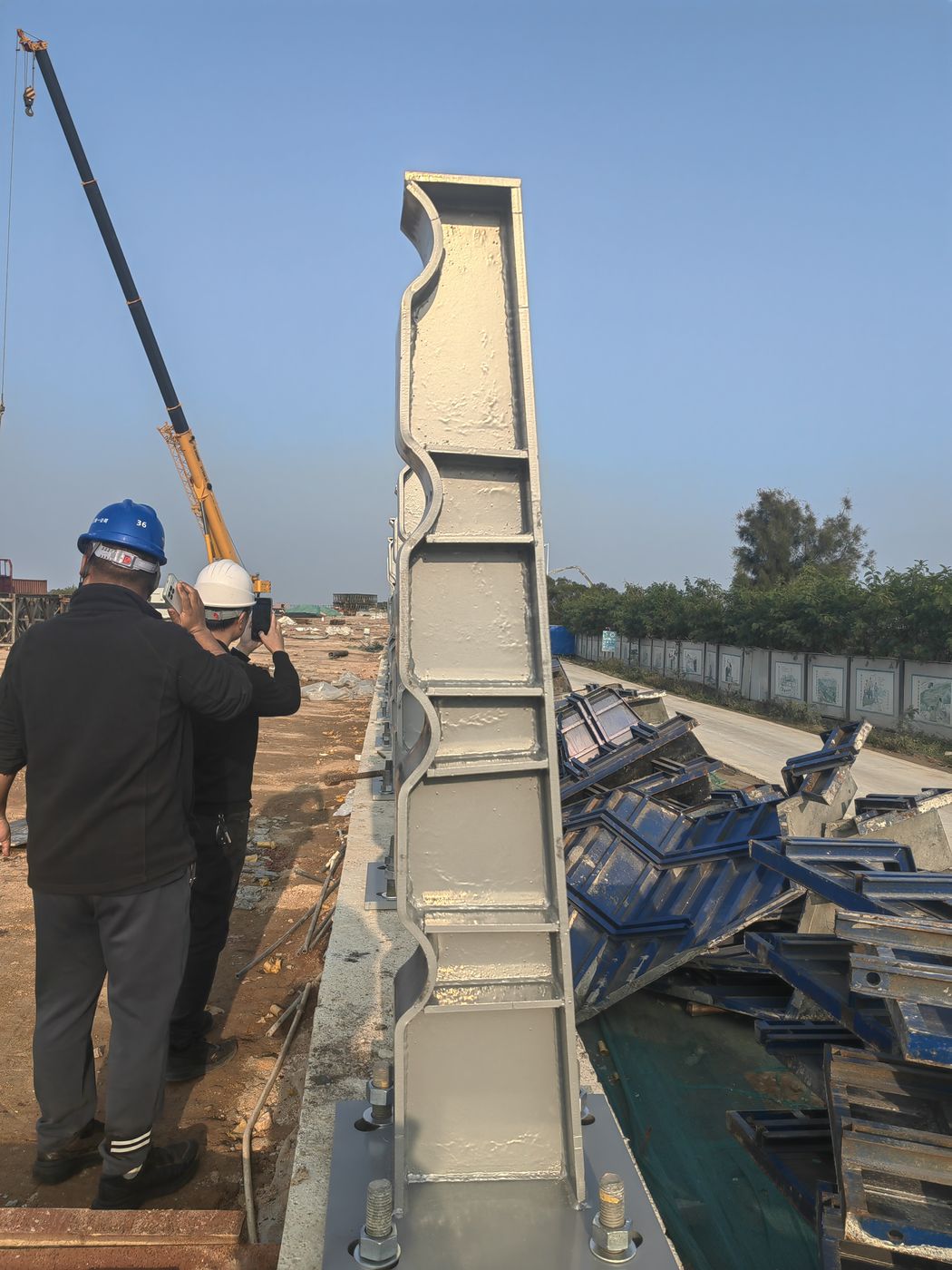

Welded Columns with Base Plates
Drilled base plates and anchor patterns.

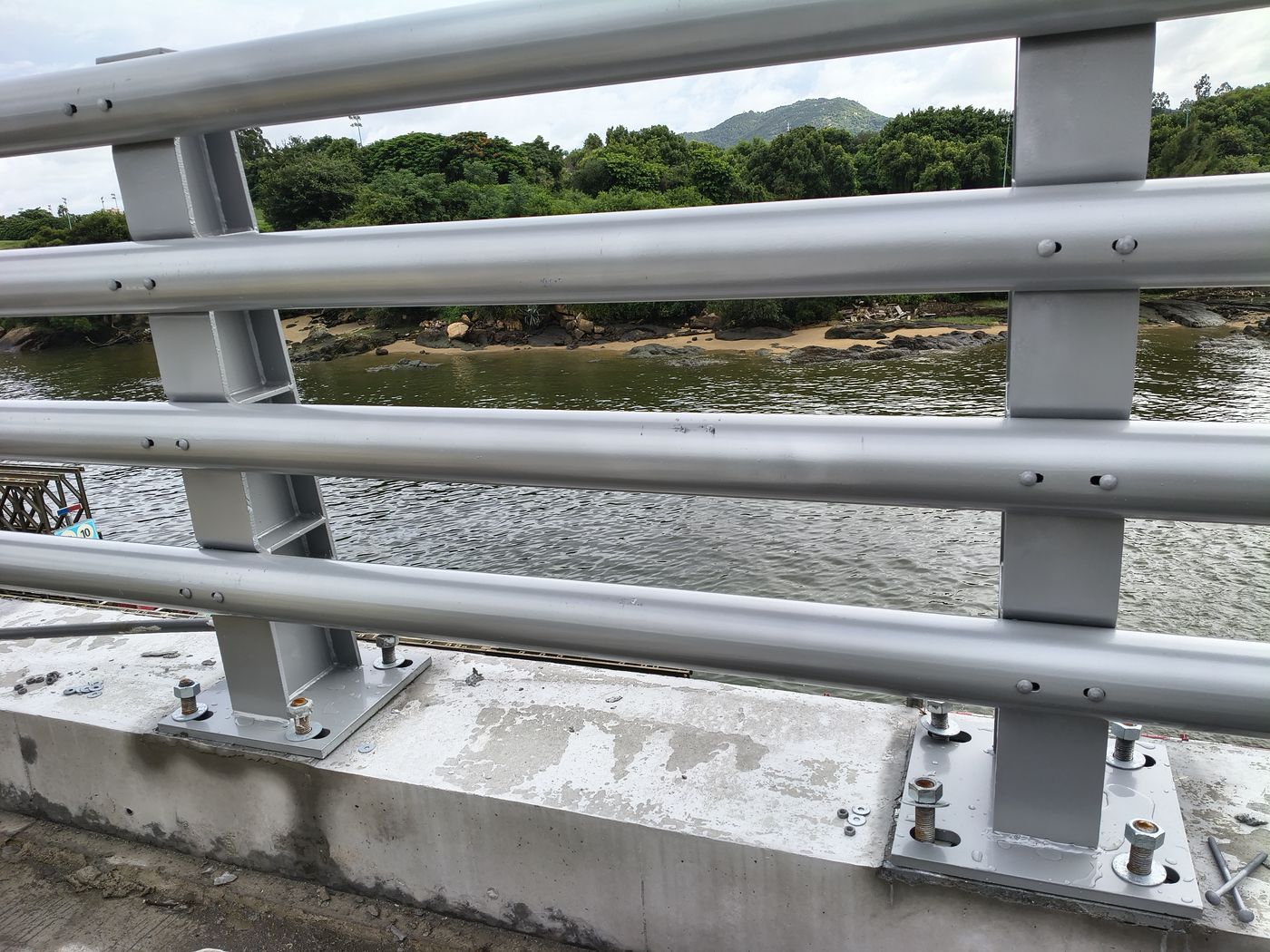

Galvanised Steel Railing & Supports
Hot dip galvanised guards and supports.

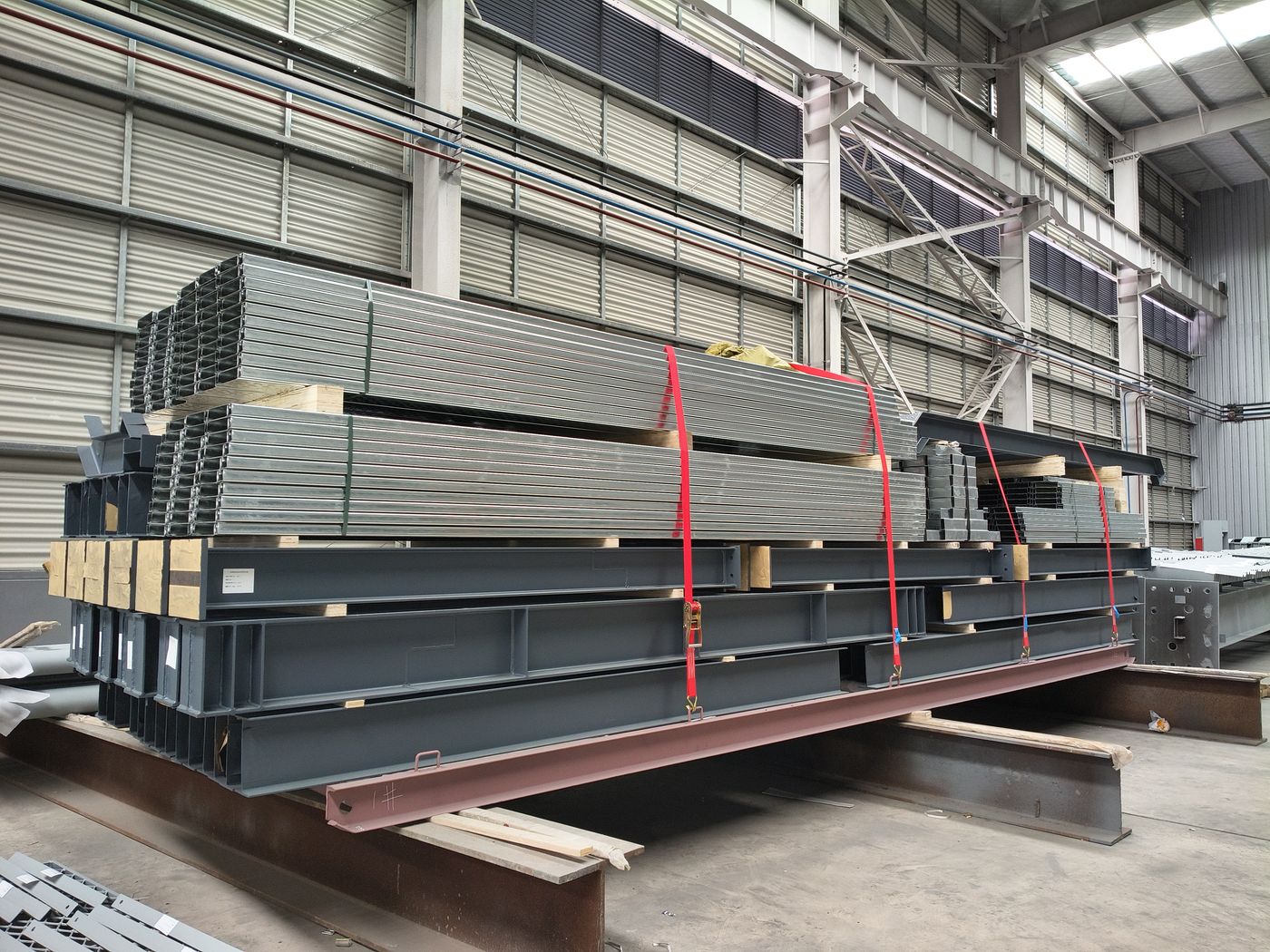

Export Packing & Strapping
Bundled, strapped and labelled for loading.
Fabrication route
From cutting list to container
Drawing review
We check sections, plate thickness, hole positions and welding access, then confirm the cutting list in writing.
Cutting & drilling
Band saw and CNC plasma cutting; base plates drilled to your anchor template.
Welding
MIG/MAG welding in jigs for repeat members; stiffeners and end plates set to drawing.
Surface finish
Shot blast and primer, or hot dip galvanising on the partner line, with coating checked per batch.
Marking & packing
Member codes, match marks and packing list, bundled on timber and strapped for loading.
Inspection & documents
What travels with the shipment
Heavy steel is hard to fix on site. That is why the checking happens before packing, and why the paperwork is built around the member list.
- Dimensional check against the approved drawing
- Weld visual inspection and fit-up check
- Coating check by batch
- Trial fit of mating parts where specified
- Packing list with member codes, quantities and weights
- Photos of finished members and loading on request
Columns · drilled base plates
Steel specification
Fabrication scope
Typical range — the final specification is confirmed on your drawing.
| Item | Range |
|---|---|
| Section | H-beam, box section, channel and built-up plate members |
| Steel grade | Q235B / Q345B (S235 / S355 on request) |
| Cutting | Band saw and CNC plasma, to your cutting list |
| Welding | MIG/MAG; jigs and fixtures for repeat members |
| Drilling | CNC drilling to your base plate and anchor pattern |
| Surface | Shot blast + primer, or hot dip galvanising |
| Member length | Fabricated to drawing; long members quoted case by case |
| Marking | Member code, match marks and packing list |
| Inspection | Dimensions, weld visual, coating check, trial fit on request |
| Packing | Bundled on timber, strapped, labelled for container loading |
| MOQ | One set for trial; batch pricing on project quantity |
| Lead time | Samples 3–7 days; production typically 2–3 weeks by scope |
Where it is used
Typical applications
01
Ground-mount structures
Brackets and beams bridging ground screw foundations to rail rows on utility and commercial arrays.
02
Carports & canopies
Columns, base plates and cross beams for solar carports and walkway canopies.
03
Walkways & platforms
Support steel, guard rails and access structures around plant and rooftop equipment.
04
Plant & equipment supports
Fabricated frames, skids and supports for inverters, transformers and service equipment.
Workshop records
Fabrication and packing
Send a drawing, get a fabrication quote
PDF drawing, cutting list or a photo of the part is enough to start. We reply with questions, then price, lead time and packing.
